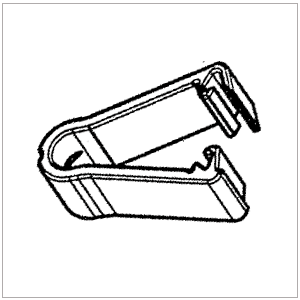

ARaymond 274484000

ARaymond Network Tinnerman®
Use Condition Dimensions (mm)
F1 Panel Thickness 0.7-1.5
F2 Panel Thickness 3
G1 Height of Cavity 0.9-1.5
L1 Length of Hole 14.7-15.3
L2 Length of Hole 9
R1 Hole Diameter 4.8-5
Product dimensions (mm)
b – Width
9
h – Height
16.5
l – Length
10
