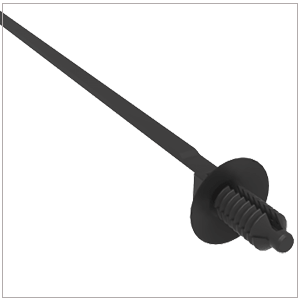

ARaymond Network Tinnerman®
Use condition dimensions (mm)
D1 – Tube/Cable Diameter
1.5 – 30
F1 – Panel Thickness
0.6 – 8
R1 – Hole Diameter
6.3 – 6.7
Product dimensions (mm)
b – Width
18
bt1 – Tie Width
4.5
h – Height
18
h1 – Height
7
hb – Height below support
9.45 – 14.85
l – Length
173.29
r1 – Contact Diameter
18
