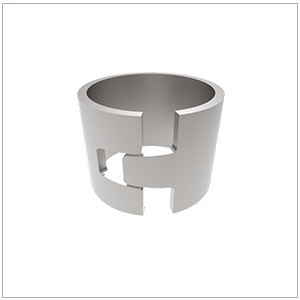

ARaymond 260905001

ARaymond Network Tinnerman®
Use condition dimensions (mm)
F1 – Panel Thickness
11.8
R1 – Hole Diameter
15.9 – 16.1
Product dimensions (mm)
d – Diameter
16.1 – 16.7
h – Height
11.7 – 11.9
s – Product Thickness
1
