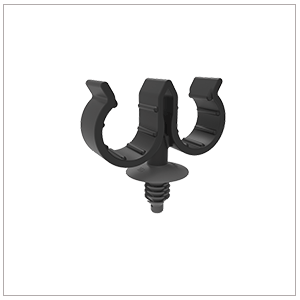

ARaymond 260870000

ARaymond Network Tinnerman®
Use condition dimensions (mm)
D1 – Tube/Cable Diameter
13.5
D2 – Tube/Cable Diameter
13.5
F1 – Panel Thickness
0.6 – 6
R1 – Hole Diameter
6.5 – 6.7
Product dimensions (mm)
b – Width
11
e – Center to Center distance
10.5
e1 – Center to Center distance
21
h – Height
38.6
h1 – Height
14.1
h2 – Height
14.1
hb – Height below support
7 – 12
l – Length
40
r1 – Contact Diameter
18
