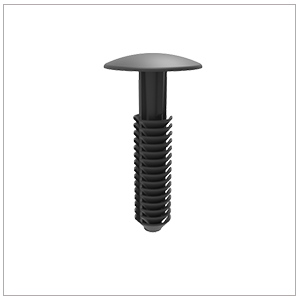

ARaymond 257299000

ARaymond Network Tinnerman®
Use condition dimensions (mm)
F1 – Panel Thickness
9.8 – 24
R1 – Hole Diameter
6.25 – 6.75
Product dimensions (mm)
d1 – Diameter
7.5
h – Height
35.6
ha – Height above the support
2.5
hb – Height below support
33.1
