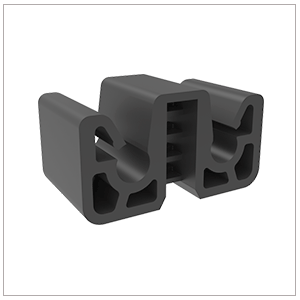

ARaymond 249574000

ARaymond Network Tinnerman®
Use condition dimensions (mm)
D1 – Tube/Cable Diameter
5.2
D2 – Tube/Cable Diameter
5.2
H1 – Stud Height
15
Z1 – Stud Diameter
5
S1 – Screw/Thread
T5 Stud
Product dimensions (mm)
b – Width
17
h – Height
15.5
l – Length
30.5
Please note we do not keep an up-to-date data of all information(inventory, price, technical data, etc.)
