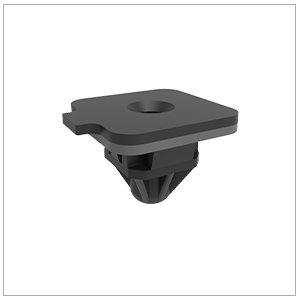

ARaymond 248609000

ARaymond Network Tinnerman®
Use condition dimensions (mm)
B1 – Width of Hole
16 – 16.25
F1 – Panel Thickness
0.7 – 1
L1 – Length of Hole
16 – 16.25
Z1 – Stud Diameter
6.3
S1 – Screw/Thread
ST6.3_14-14
Product dimensions (mm)
b – Width
25.4
h – Height
19.8
ha – Height above the support
1.75
hb – Height below support
15.4 – 15.75
l – Length
28.9
