ARaymond 248395000

ARaymond Network Tinnerman®

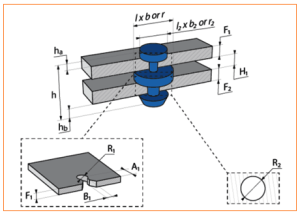

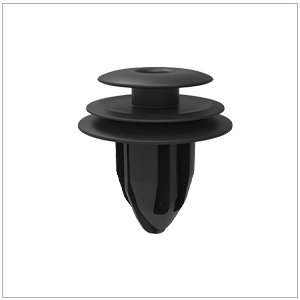

Use condition dimensions (mm)

A1 – Center to Edge Distance
9
F1 – Panel Thickness
2.51 – 2.71
B1 – Width of Hole
4.5
R1 – Hole Diameter
5.6
F2 – Panel Thickness
0.7 – 1.2
R2 – Hole Diameter
8.3 – 8.5
Product dimensions (mm)
d – Diameter
18
h – Height
20.4
Please note we do not keep an up-to-date data of all information(inventory, price, technical data, etc.)
