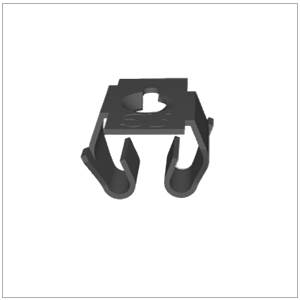

ARaymond 248391000

ARaymond Network Tinnerman®
Use condition dimensions (mm)
B1 – Width of Hole
7 – 8
L1 – Length of Hole
9
F1 – Panel Thickness
2.7
Z1 – Stud Diameter
2.9
S1 – Screw/Thread
ST2.9_4-24
Product dimensions (mm)
b – Width
11.35
h – Height
8.4
l – Length
12
