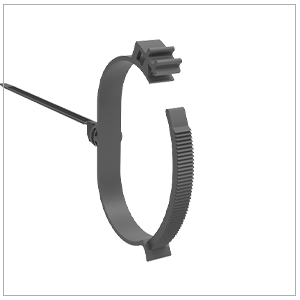

ARaymond 242782000

ARaymond Network Tinnerman®
Use condition dimensions (mm)
D1 – Cable Diameter
1 – 20
D2 – Tube Diameter
40 – 50
Product dimensions (mm)
b – Width
10
bt1 – Tie Width
5
e1 – Center to Center distance
32.4
h – Height
52
l – Length
186.3
