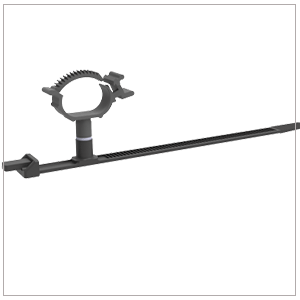

ARaymond 242332000

ARaymond Network Tinnerman®
Use condition dimensions (mm)
D1 – Tube/Cable Diameter
8 – 33
D2 – Tube/Cable Diameter
10 – 14
Product dimensions (mm)
b – Width
11
bt1 – Tie Width
7
e1 – Center to Center distance
24.6 – 26.6
h – Height
36.1
l – Length
146
