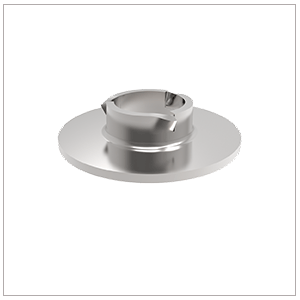

ARaymond 241896001

ARaymond Network Tinnerman®
Use condition dimensions (mm)
F1 – Panel Thickness
2.9 – 3.1
R1 – Hole Diameter
7.9 – 8.1
Product dimensions (mm)
d – Diameter
16
h – Height
3.41
r1 – Contact Diameter
16
s – Product Thickness
0.71
