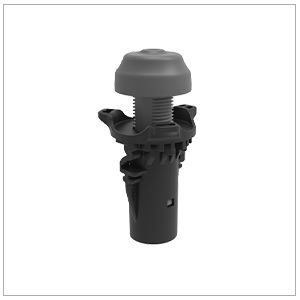

ARaymond 240212000

ARaymond Network Tinnerman®
Use condition dimensions (mm)
B1 – Width of Hole
7.8 – 8
F1 – Panel Thickness
1 – 3
L1 – Length of Hole
21.8 – 22
R1 – Hole Diameter
17.6 – 17.8
Product dimensions (mm)
d – Diameter
32.7
h – Height
56.5
