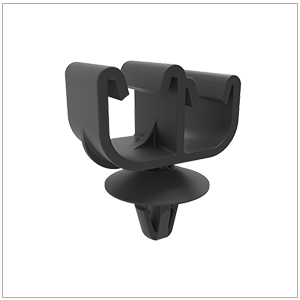

ARaymond 235327000

ARaymond Network Tinnerman®
Use condition dimensions (mm)
D1 – Tube/Cable Diameter
8
D2 – Tube/Cable Diameter
10
F1 – Panel Thickness
4
R1 – Hole Diameter
6.5
Product dimensions (mm)
b – Width
17.9
h – Height
30.5
l – Length
23.9 – 24.1
