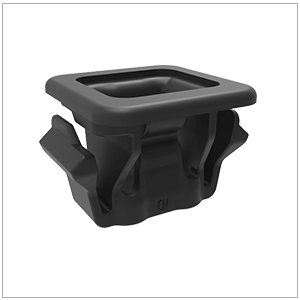

ARaymond 231239000

ARaymond Network Tinnerman®
Use condition dimensions (mm)
B1 – Width of Hole
5.4 – 5.6
B2 – Width of Hole
16.85 – 17.15
F1 – Panel Thickness
2.9 – 3.1
F2 – Panel Thickness
3.2 – 3.4
H – Stud Height
1.9 – 2.5
L1 – Length of Hole
7.4 – 7.6
L2 – Length of Hole
12.27 – 12.53
