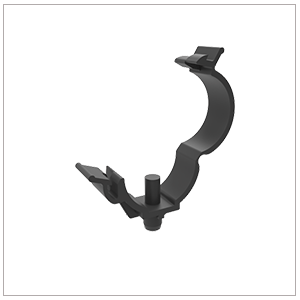

ARaymond 220322000

ARaymond Network Tinnerman®
Use condition dimensions (mm)
D1 – Tube/Cable Diameter
25
F1 – Panel Thickness
0.7 – 2.5
J1 – Width of Housing
25.6
R1 – Hole Diameter
6.5 – 6.8
Product dimensions (mm)
b – Width
12
h – Height
59.7
h1 – Height
17
hb – Height below support
3.5 – 5.3
l – Length
53
