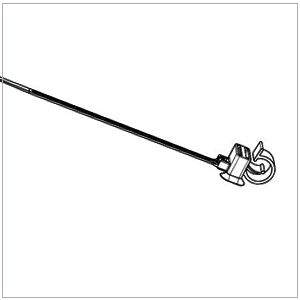

ARaymond 218680001

ARaymond Network Tinnerman®
Use condition dimensions (mm)
D1 – Tube/Cable Diameter
8 – 33
D2 – Tube/Cable Diameter
8 – 50
Product dimensions (mm)
b – Width
8.5
h – Height
11.75
l – Length
213
bt1 – Tie Width
4.5
bt2 – Tie Width
4.5
e1 – Center to Center distance
11.75
