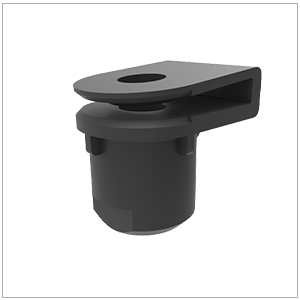

ARaymond 211316000

ARaymond Network Tinnerman®
Use condition dimensions (mm)
A1 – Center to Edge Distance
8 – 8.2
B1 – Width of Hole
12
F1 – Panel Thickness
1.7
R1 – Hole Diameter
8.5 – 8.7
Z1 – Stud Diameter
4.8
S1 – Screw/Thread
ST4.8_10-16
Product dimensions (mm)
b – Width
12
h – Height
14.8
l – Length
16
