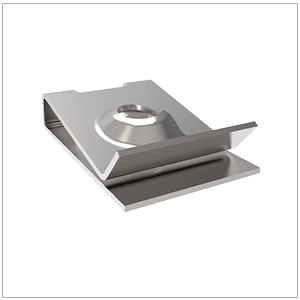

ARaymond 151658000

ARaymond Network Tinnerman®
Use condition dimensions (mm)
A1 – Center to Edge Distance
8.7
F1 – Panel Thickness
1 – 3
R1 – Hole Diameter
6
Z1 – Stud Diameter
4.8
S1 – Screw/Thread
ST4.8_10-16
Product dimensions (mm)
b – Width
12.5
h – Height
4.3
l – Length
19.5
Please note, we do not keep an up-to-date data of all information(inventory, price, technical data, etc.)
