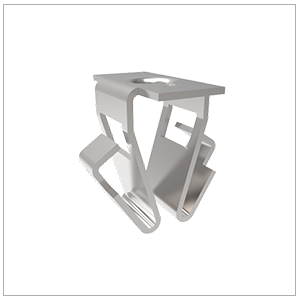

ARaymond 135219001

ARaymond Network Tinnerman®
Use condition dimensions (mm)
B1 – Width of Hole
7.13
F1 – Panel Thickness
3.75 – 4.25
L1 – Length of Hole
8.38 – 8.62
Z1 – Stud Diameter
4.2
S1 – Screw/Thread
ST4.2_8-18
Product dimensions (mm)
b – Width
12.7
h – Height
12.7
ha – Height above the support
0.56
hb – Height below support
12.7
l – Length
6.88
l1 – Length
13
s – Product Thickness
0.56
