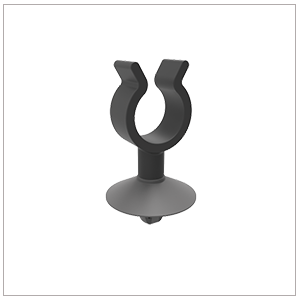

ARaymond 081727001

ARaymond Network Tinnerman®
Use condition dimensions (mm)
D1 – Tube/Cable Diameter
12 – 13
F1 – Panel Thickness
0.5 – 3
R1 – Hole Diameter
6.3 – 6.7
Product dimensions (mm)
b – Width
21
h – Height
37.5
h1 – Height
19.5
hb – Height below support
6.8
l – Length
21
r1 – Contact Diameter
21
