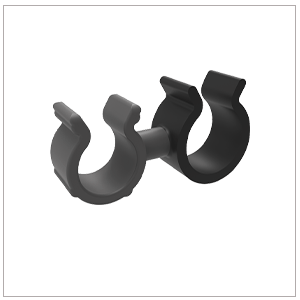

ARaymond 081204000

ARaymond Network Tinnerman®
Use condition dimensions (mm)
D1 – Tube/Cable Diameter
11 – 13
D2 – Tube/Cable Diameter
14 – 15
Product dimensions (mm)
b – Width
10
e1 – Center to Center distance
23
h – Height
21.2
l – Length
39.7
