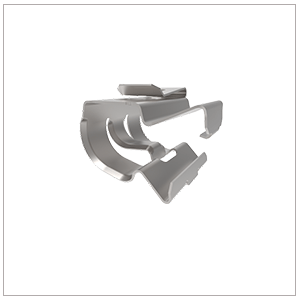

ARaymond 020568000

ARaymond Network Tinnerman®
Use condition dimensions (mm)
A1 – Center to Edge Distance
8.8 – 9.2
D1 – Tube/Cable Diameter
13.5
F1 – Panel Thickness
0.8 – 2
R1 – Hole Diameter
4.8 – 5.2
Product dimensions (mm)
b – Width
28.5
h – Height
27
l – Length
22.2
