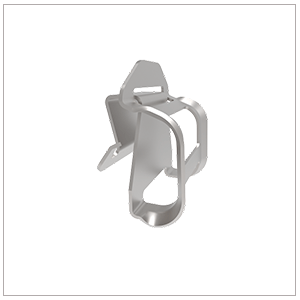

ARaymond 020306001

ARaymond Network Tinnerman®
Use condition dimensions (mm)
D1 – Tube/Cable Diameter
4.4 – 4.6
D2 – Tube/Cable Diameter
4.4 – 4.6
F1 – Panel Thickness
2.5 – 3.5
Product dimensions (mm)
b – Width
15
h – Height
17.2
l – Length
10.5
