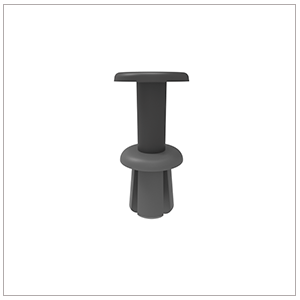

ARaymond 019874000

ARaymond Network Tinnerman®
Use condition dimensions (mm)
F1 – Panel Thickness
0.8 – 9.5
R1 – Hole Diameter
7.8 – 8.8
Product dimensions (mm)
d1 – Diameter
13.5
d2 – Diameter
12.7
h – Height
28.8
ha – Height above the support
3.5
hb – Height below support
2.8 – 11.5
