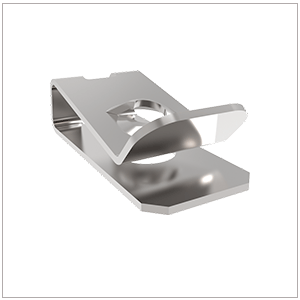

ARaymond 019069000

ARaymond Network Tinnerman®

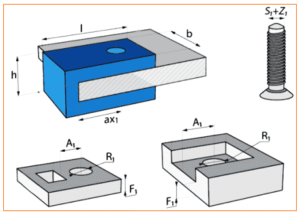

Use condition dimensions (mm)

A1 – Center to Edge Distance
11.8 – 12.2
F1 – Panel Thickness
2.5 – 5
R1 – Hole Diameter
6.8 – 7.2
S1 – Screw/Thread
ST4.2_8-18
Product dimensions (mm)
b – Width
11
h – Height
7.4
l – Length
24
