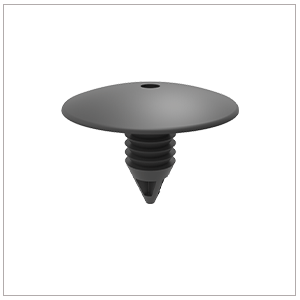

ARaymond 018000000

ARaymond Network Tinnerman®
Use condition dimensions (mm)
F1 – Panel Thickness
2 – 13
R1 – Hole Diameter
10.2
Product dimensions (mm)
d1 – Diameter
35
h – Height
26
ha – Height above the support
4
hb – Height below support
9 – 20
