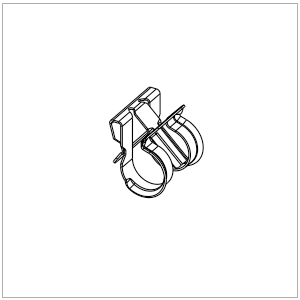

ARaymond 016437002

ARaymond Network Tinnerman®
Use condition dimensions (mm)
B1 – Width of Hole
8 – 8.5
F1 – Panel Thickness
0.8
H1 – Stud Height
17
L1 – Length of Hole
11
X1 – Length of Stud
10
Y1 – Width of Stud
1.7 – 2.1
Product dimensions (mm)
b – Width
12.5
b1 – Width
12.5
h – Height
16.5
ha – Height above the support
3
hb – Height below support
12.9
l – Length
9.45
s – Product Thickness
0.5
